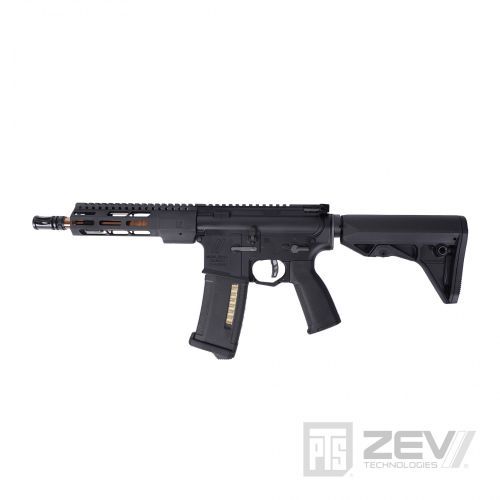

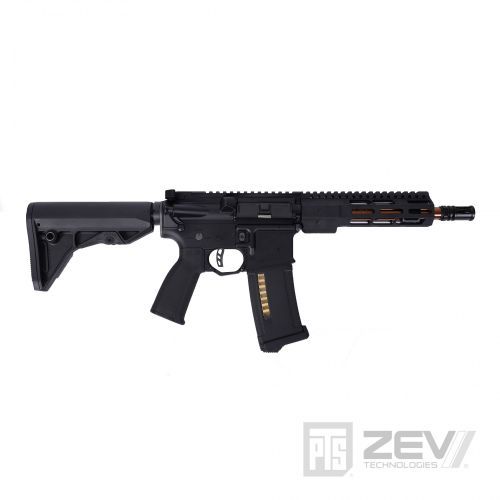

PTS Syndicate Airsoft ZEV Core Elite AEG Rifle - 7.5"

The PTS ZEV Core Elite Airsoft Electric Guns (AEGs) are available in 3 models with 7.5 / 10.5 /

14.5inch barrels. Each model comes with the PTS ZEV Wedge Lock Rail which provides full

continuous top rail with M-LOK mounting system and with integrated anti-rotation pin ensure a

consistent rail alignment and rifle rigidity. The outer barrel comes with the special bronze finish

and the receivers are deeply engraved to ensure the Zev airsoft rifles’ appearance are authentic

with the original Zev rifles. Additionally, included as standard equipment for the ZEV Core Elite

AEG, are PTS’ highly popular proprietary design polymer accessories including the Enhanced

Polymer Grip (EPG / EPG-C), Enhanced Polymer Trigger Guard, 150rd Enhanced Polymer

Magazine (EPM) and Enhanced Polymer Stock – Compact (EPS-C).

Internally, the PTS Version 2 AEG Gearbox with 18:1 ratio gear and 8mm ball bearing features a

quick-change spring for power adjustment, for higher efficiency and lower power consumption,

and an electronic trigger MOSFET unit (non-programmable) for faster trigger responses and

electrical wiring protection.



Features

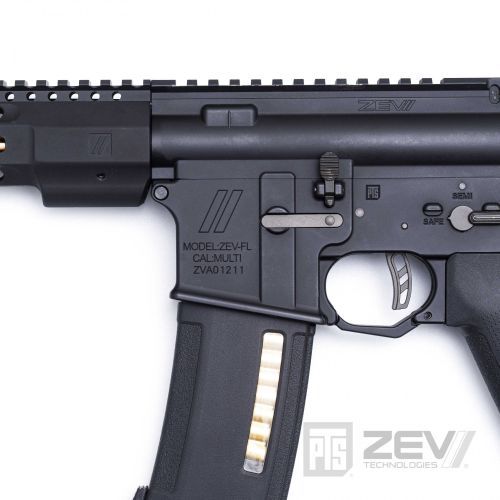

• Authentic licensed trademark ZEV Technology engravings

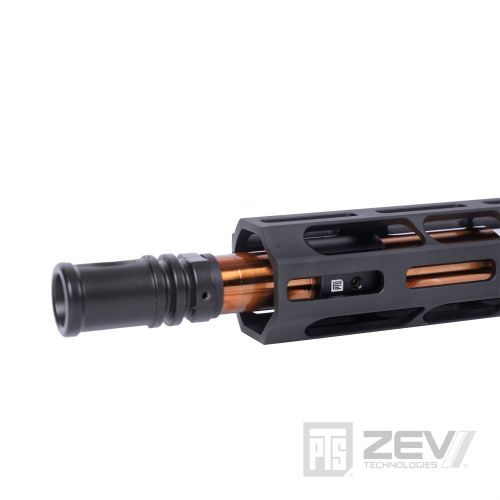

• 7.5 / 10.5 / 14.5 Inch Barrel with Bronze Color Finish

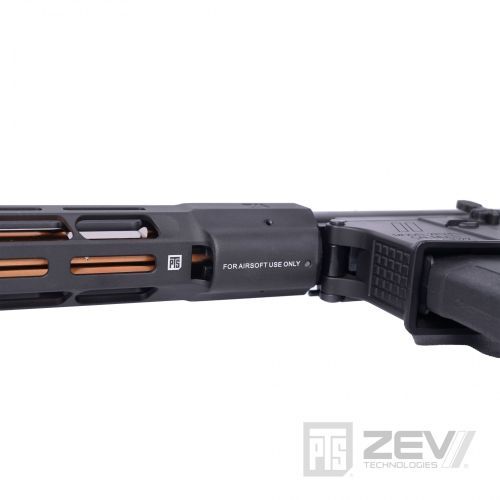

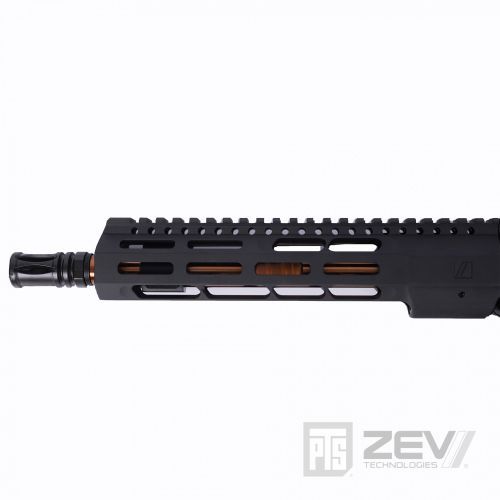

• PTS ZEV Wedge Lock Rail (7 / 9 / 12 inch) - very sleek, modern looking M-LOK compatible
• handguard that is skeletonized for lightweight without compromising strength.

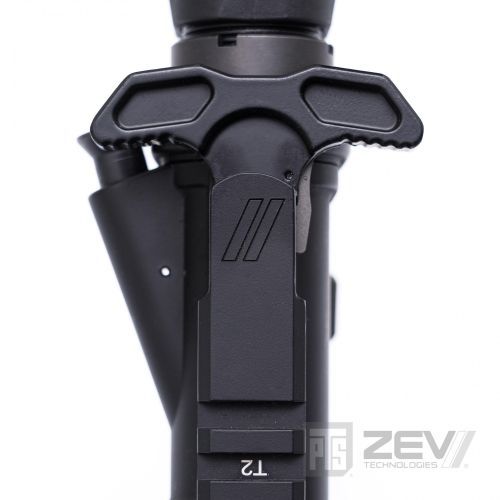

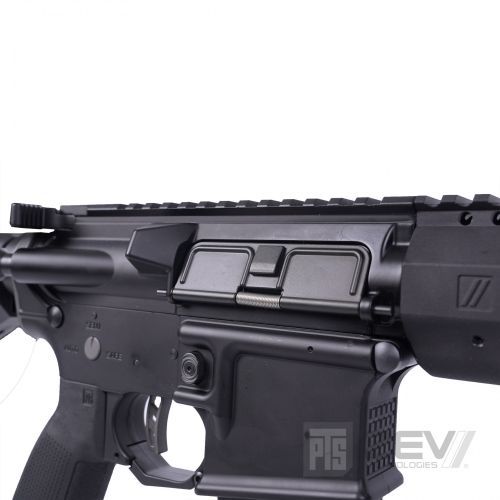

• PTS ZEV Slide Lock Charging Handle (AEG) - minimalist design, fully ambidextrous controls,
• and minimal moving parts for simple and reliable operation.
• PTS ZEV Single Stage Rifle Trigger (SSR) – adjustable trigger pull for customizable trigger
• responsiveness. The straight trigger blade design provide a short pull geometry.

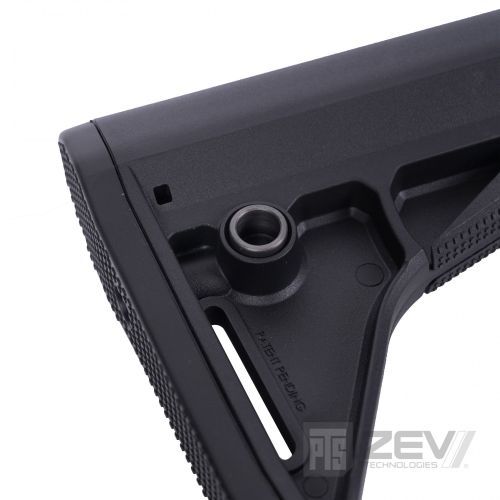

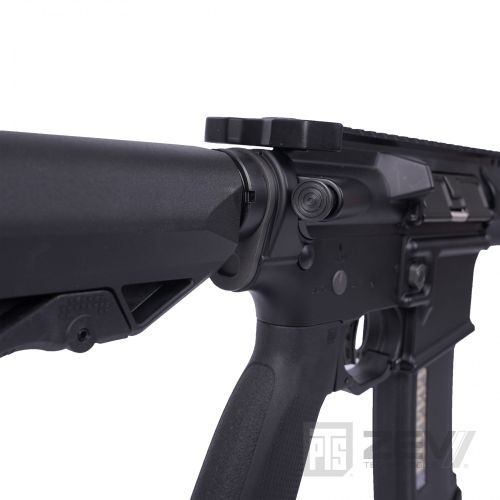

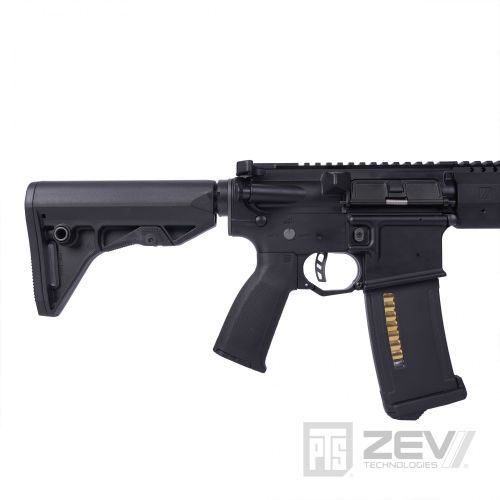

• EP Stock – Compact (EPS-C) - a simple, minimalist, sleek, and lightweight polymer stock.
• Features rounded cheek welds stay in tune with the slim profile of the stock whilst
• maintaining user comfort.
• EP Trigger Guard (AEG) - a shallow“V” shape which enlarges the trigger guard opening for
• better use with gloves.
• EP Magazine (AEG) - EP Magazine, boasts a Dupont® Zytel™ reinforced polymer body and
• holds up to a maximum of 150 rounds. It also compatible with PTS EPM1 which be sold
• separately.

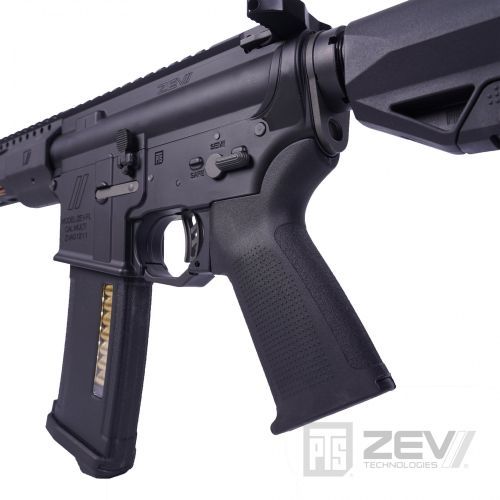

• EP Grip (EPG) (Only 14.5 inch) - ergonomically designed for excellent comfort and a firm
• angled grip for maximum recoil control.
• EP Grip – Compact (EPG-C) (Only 7.5 / 10.5 inch) – More vertical compact grip angle with
• improved ergonomics
• Rear Wired & Li-Po Ready – Can handle the power of 11.1v Li-Po batteries.
• Recommend 7.4v-11.1v Li-Po batteries (15C)



Specification

Colour - Black

Dimensions – 7.5 inch: 640 mm (stock retracted), 720 mm (stock extended)

Package size - 90 x 31.2 x 8.1cm

Weight – 7.5 inch: 2.42 kg (product), 4.02kg (with package)

Rail Handguard Length – 7 / 9 / 12 inch (with CNC Gas Block)

Outer Barrel Length – 7.5 / 10.5 / 14.5 inch

Inner Barrel Length – 7.5 / 10.5 / 14.5 inch (6.03mm diameter)

Barrel Thread – 14mm Counter-Clockwise (CCW)

Upper & Lower Frame – ZEV Core Elite Style (good gripping front side)

Hop-Up – Adjustable from the breach

Shooting Mode - Safety / Semi-Auto / Full-Auto

Gearbox Type -

Ball Bearing Size: 8mm

Gear Material: Steel

Gear Ratio: 18:1

Piston Material: Reinforced Polymer (Nylon + 33%FG)

Piston Teeth: 14 MIM Steel Piston Teeth

Tapper Plate: Custom Sized Reinforced Polymer

Cylinder Material: Stainless Steel

Cylinder Head: Aluminium, Double O-Ring Air Seal Type

Quick Change Spring – Support

Trigger – ZEV SSR style (adjustable trigger pull)

Stock Buffer – Quick-Detach Ball Bearing Spring Guide

Digital Control -

• Electronic Trigger System: Build-in design (without programmable control module)
• MOSFET: Integrated
• AEG Motor – 36000 High Torque (good initial action response)
• AEG Power Source – 7.4v – 11.1v (15C) (LiPo type, not included)
• Battery Connector – Large T-Plug Deans Connector

Magazine Capacity - 150 rounds (PTS EPM AEG) fully compatible with PTS EPM1 250

rounds



Muzzle Velocity – 320 FPS approx @0.2g bbs (7.5 inch)

Rate of Fire – ~20+ RPS

The owners manual can be found here.
