Gate

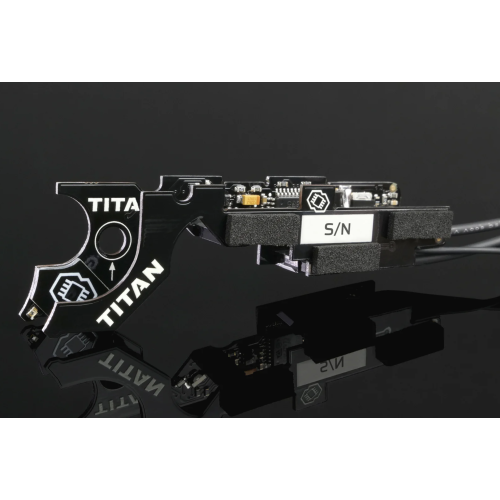

TITAN V3 Expert Module
Product Code: TTN3-EM
Supply Voltage Range
3.75-17 V
Current Consumption
22 mA
Low Power Mode
320 µA
Dimensions (Length x Width x Height)
79.0 x 25.8 x 13.5 mm
Finished Product Weight
28.2 g
Operating Temperature Range
min. -15°C max. + 50°C
Relative Humidity
≤ 80%
Connect your TITAN with the GCS App and get total control of your AEG:
- Control your airsoft gun from your iOS, Android, macOS or Windows device
- Set trigger sensitivity exactly as you like and adjust other TITAN settings in a simple way
- Use automatic Pre-Cocking to gain a trigger reaction just like in a real gun
- Try out ROF control, magazine simulation, and other functions
- Update and upgrade Firmware
- Check BB counters and telemetric data
- Perform diagnostics and send reports
- Virtual STATUS for smartwatches and smartphones
- Bolt Catch and magazine sensors for a realistic reload sequence
What makes TITAN V3 so special?
User-friendly configuration via the GATE Control Station App
Firmware updates via the internet enabling improvements
Proximity trigger sensor offering you even 250 possible sensitivity settings
Innovative optical sensors instead of mechanical switches that can be prone to faults
Access to the Statistics and Telemetry
Replicates trigger response like in real life
Compatible with DSG, SSG and 19-tooth gears

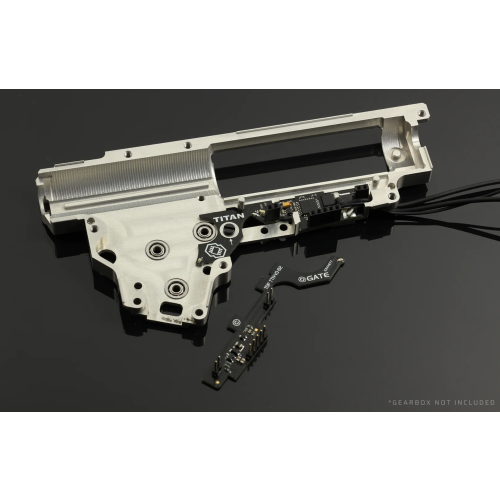

Compatible with most V3 gearboxes (including CNC ones) on the market without any modification
Compatible with most powerful AEG replicas
